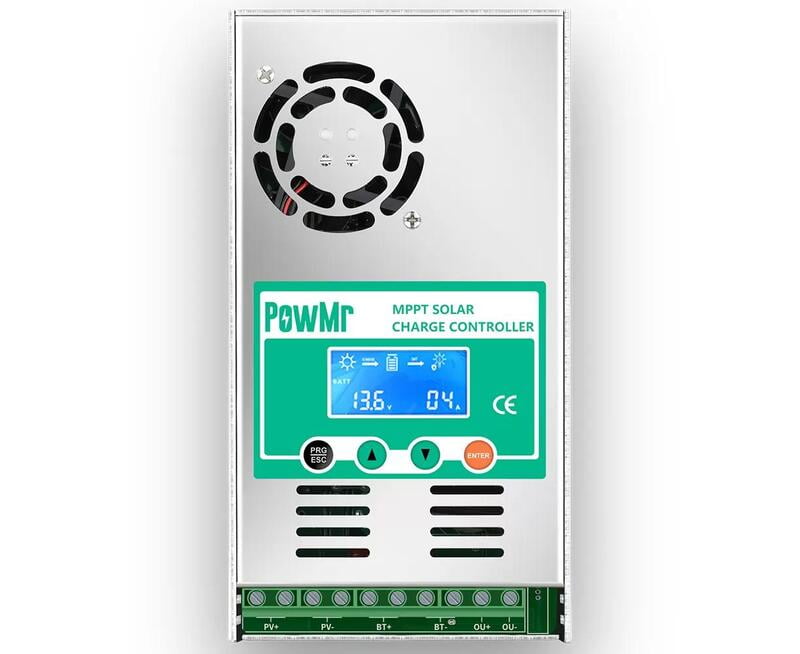

PowMr 60A MPPT Solar Charge Controller
SPECIFICATIONS
Charging Mode | 3-stage: Constant Current(MPPT), Constant Voltage, Floating |
MAX PV Input Power | 12V Battery System – 720W 24V Battery System – 1440W 36V Battery System – 2100W 48V Battery System - 2800W |
Solar Panel Input Specification DC | 12V Battery System DC – PV Input: 20V-80V 24V Battery System DC – PV Input: 37V-105V 36V Battery System DC – PV Input: 50V-160V 48V Battery System DC - PV Input: 72V-160V |
Brand: PowMr
Warranty: 2 Year
60A MPPT SOLAR CHARGE CONTROLLER
Featuring a 3-stage MPPT charging process (Constant Current, Constant Voltage, Floating), it ensures maximum efficiency with a rating of ≥98.1%. With an impressive PV utilization rate of ≥99%, this 60A MPPT solar charge controller maximizes the conversion of solar energy, delivering exceptional charging performance.
VERSATILE COMPATIBILITY
The built-in DSP controller, coupled with high-performance capabilities, automatically detects 12V, 24V, 36V, and 48V solar battery voltages. It offers compatibility with a wide range of Deep Cycle battery options, including Lithium, LiFePO4, Li(NiCoMn)O2, Flooded, Sealed, Gel, and User-Defined batteries.
WIDE RANGE SOLAR VOLTAGE/POWER SUPPORT

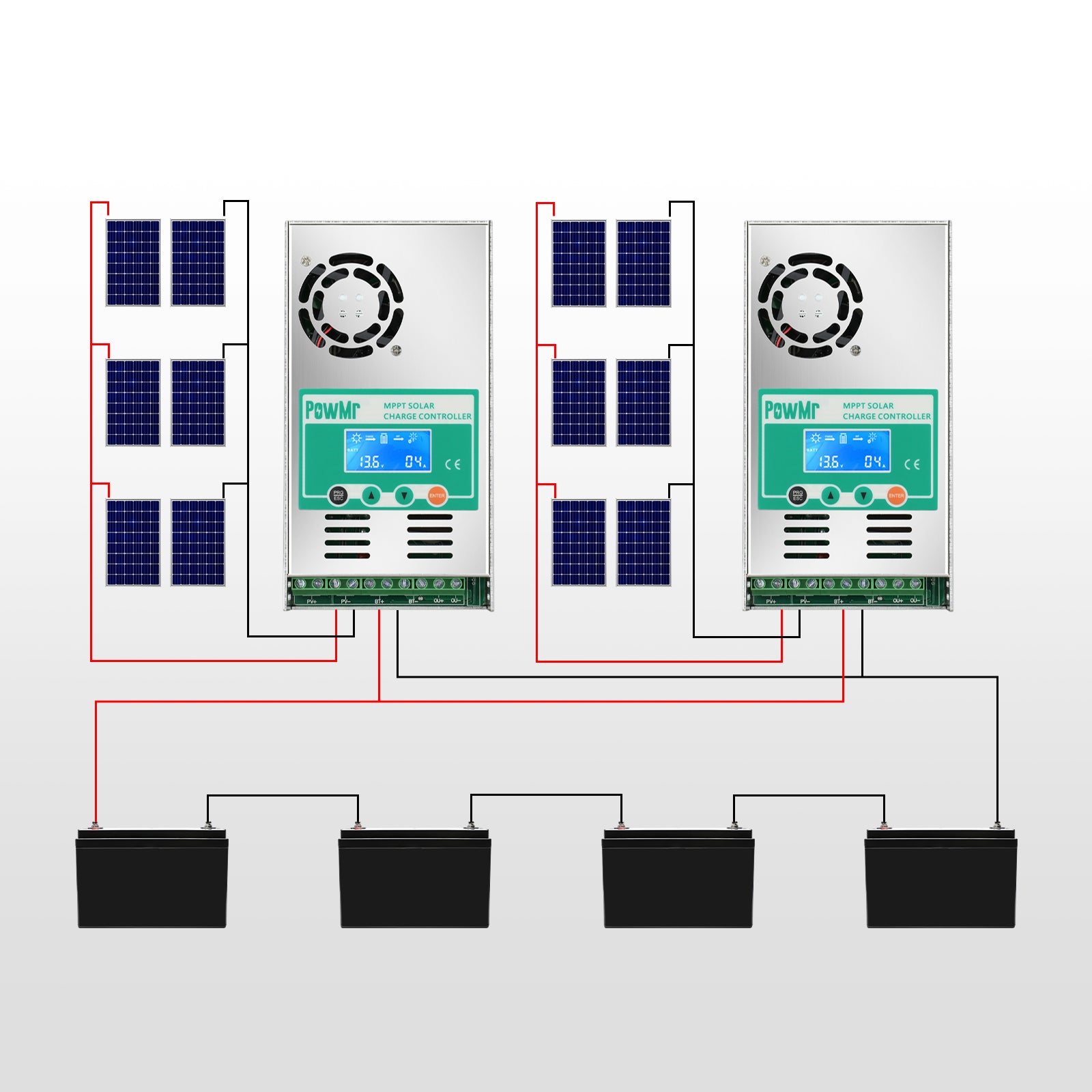

The HHJ-60A MPPT solar charge controller provides support for high PV input power and voltage, allowing users to connect multiple panels in series. With a maximum input voltage of up to 160V, it increases system efficiency, simplifies installation, and helps save money on wires and connectors.
MULTIPLE ELECTRONIC PROTECTIONS
This MPPT solar charge controller offers comprehensive protection against PV short circuit, reverse polarity, battery overvoltage, overdischarge, load overcurrent, load short circuit, and over-temperature conditions to keep your system safe at all times. The intuitive LCD screen allows effortless adjustment of charging mode parameters to meet your requirements.
